Cartography Rules¶

Cartography Rules is a security query library for your Cartography graph.

With the cartography-rules CLI, you can:

Run pre-defined security queries across your infrastructure
Identify potential attack surfaces and security gaps
Explore and contribute community rules
Build custom queries for your own environment

Architecture¶

The rules system uses a simple two-level hierarchy:

Rule (e.g., mfa-missing, object_storage_public)
  └─ Fact (e.g., aws_s3_public, missing-mfa-ontology)

Rules represent security issues or attack surfaces you want to detect (e.g., “Public Object Storage exposed on internet”).

Facts are individual Cypher queries that gather evidence about your environment across different cloud providers and services.

This flat structure makes it easy to understand, maintain, and extend the rules library.

Design Philosophy¶

These rules are designed from an attacker’s perspective. We ask: “What does an attacker actually need to exploit this weakness or gain access?”

The queries surface opportunities across the entire attack lifecycle: initial access, lateral movement, privilege escalation, data exfiltration, and persistence.

We don’t impose arbitrary thresholds like “no more than 5 admins” because every organization has different risk tolerances. Instead, we surface facts:

If a query returns no findings, you’ve eliminated obvious attack paths
If it returns findings, you now have a clear list of potential attacker targets and security gaps

Rationale¶

Security isn’t one-size-fits-all. For example:

An EC2 security group open to the internet may be risky for some orgs even if it isn’t attached to an instance (someone could attach one later). For other orgs, that’s irrelevant noise.
IAM roles trusted across multiple accounts or S3 buckets with public access may or may not be material risks depending on your use case.
User accounts without MFA might be acceptable in development environments but critical in production.

Our goal is to surface facts in context so you can decide what matters for your environment.

You can list all available rules and their details from the CLI, see below.

Note

Rules query against the existing Cartography graph. They don’t write data; they return results you can view in text, JSON, or the Neo4j Browser.

Rules Lifecycle¶

Rule Versioning¶

Each rule has a semantic version number (e.g., 0.1.0, 1.0.0) that helps track changes over time:

Major version (X.0.0): Breaking changes - query structure significantly altered, findings format changed
Minor version (0.X.0): Additive changes - new facts added, expanded coverage to additional providers
Patch version (0.0.X): Bug fixes - query improvements, description updates

Example lifecycle:

1.0 → Initial release with AWS support
2.0 → Added Azure and GCP facts
2.1 → Fixed query performance issue
0.0 → Promoted to stable, all facts tested in production

When a rule’s version changes, you can review the changes in the git history to understand what was modified and assess impact on your existing workflows.

Fact Maturity Levels¶

Each fact has a maturity level that indicates its stability and production-readiness:

`EXPERIMENTAL`¶

Use case: New facts, recently added, or covering new security patterns
Stability: May have bugs, query performance not optimized, output format may change
Testing: Limited production testing
What to expect:
- False positives/negatives possible
- Query might be slow on large graphs
- Results format may evolve
When to use: Early adopters, testing new detection capabilities, non-critical analysis

Example:

_new_attack_surface = Fact(
    id="aws_new_vulnerability_check",
    name="New AWS Vulnerability Pattern",
    description="Recently discovered attack pattern",
    cypher_query="...",
    cypher_visual_query="...",
    cypher_count_query="...",
    identity_fields=("id",),
    module=Module.AWS,
    maturity=Maturity.EXPERIMENTAL,  # New, needs testing
)

`STABLE`¶

Use case: Production-ready facts with proven accuracy
Stability: Well-tested, optimized queries, consistent results
Testing: Extensively tested across multiple environments
What to expect:
- Reliable results with minimal false positives
- Good query performance
- Stable output format
When to use: Production security monitoring, compliance reporting, automated alerting

Example:

_proven_check = Fact(
    id="aws_s3_public",
    name="Internet-Accessible S3 Storage Attack Surface",
    description="AWS S3 buckets accessible from the internet",
    cypher_query="...",
    cypher_visual_query="...",
    cypher_count_query="...",
    identity_fields=("id",),
    module=Module.AWS,
    maturity=Maturity.STABLE,  # Battle-tested in production
)

Filtering by Maturity¶

You can exclude experimental facts from your analysis:

# Only run stable facts
cartography-rules run object_storage_public --no-experimental

# Run all (including experimental) - default behavior
cartography-rules run object_storage_public

Typical Fact Lifecycle¶

Initial Development (EXPERIMENTAL)
- New fact created to detect a security issue
- Basic testing in development environment
- Community feedback gathered
Refinement (EXPERIMENTAL)
- Query optimization based on performance testing
- False positive reduction
- Documentation improvements
- Tested across diverse environments
Promotion (STABLE)
- Proven accuracy across multiple production deployments
- Query performance optimized
- Output format finalized
- Comprehensive test coverage
Maintenance (STABLE)
- Bug fixes as needed
- Query updates to handle new Cartography schema changes
- Description clarifications

Version and Maturity Together¶

Rules evolve over time. Here’s how versioning and maturity work together:

# Version 0.1.0 - Initial release
object_storage_public = Rule(
    id="object_storage_public",
    name="Public Object Storage Attack Surface",
    description="Publicly accessible object storage services such as AWS S3 buckets and Azure Storage Blob Containers",
    tags=("infrastructure", "attack_surface"),
    output_model=ObjectStoragePublic,
    facts=(
        _aws_s3_public,        # EXPERIMENTAL - new query
    ),
    version="0.1.0",
)

# Version 0.2.0 - Added Azure support
object_storage_public = Rule(
    id="object_storage_public",
    name="Public Object Storage Attack Surface",
    description="Publicly accessible object storage services such as AWS S3 buckets and Azure Storage Blob Containers",
    tags=("infrastructure", "attack_surface"),
    output_model=ObjectStoragePublic,
    facts=(
        _aws_s3_public,        # EXPERIMENTAL
        _azure_storage_public, # EXPERIMENTAL - newly added
    ),
    version="0.2.0",
)

# Version 0.2.1 - Bug fix
# AWS query fixed, no version bump for facts themselves

# Version 1.0.0 - Production ready
object_storage_public = Rule(
    id="object_storage_public",
    name="Public Object Storage Attack Surface",
    description="Publicly accessible object storage services such as AWS S3 buckets and Azure Storage Blob Containers",
    tags=("infrastructure", "attack_surface"),
    output_model=ObjectStoragePublic,
    facts=(
        _aws_s3_public,        # STABLE - promoted after extensive testing
        _azure_storage_public, # STABLE - promoted after extensive testing
    ),
    version="1.0.0",
)

Setup¶

Make sure you’ve run Cartography and have data in Neo4j.

Then configure your Neo4j connection:

export NEO4J_URI=bolt://localhost:7687 # or your Neo4j URI
export NEO4J_USER=neo4j # or your username
export NEO4J_DATABASE=neo4j # or your database name

# Store the Neo4j password in an environment variable. You can name this anything you want.

set +o history # avoid storing the password in the shell history; can also use something like 1password CLI.
export NEO4J_PASSWORD=password
set -o history # turn shell history back on

Quick start¶

List all available rules
```
cartography-rules list
```

View details of a specific rule

cartography-rules list object_storage_public

Run a specific rule

cartography-rules run object_storage_public

Sample output:

Executing object_storage_public rule
Total facts: 2

Fact 1/2: Internet-Accessible S3 Storage Attack Surface
Rule:     object_storage_public - Public Object Storage Attack Surface
Fact ID:     aws_s3_public
Description: AWS S3 buckets accessible from the internet
Provider:    AWS
Neo4j Query: http://localhost:7474/browser/?cmd=play&arg=<encoded-query>
Results:     3 item(s) found
    Sample findings:
    1. bucket=cdn.example.com, region=us-east-1, anonymous_access=True
    2. bucket=mybucket.example.com, region=us-east-1, anonymous_actions=['s3:ListBucket', 's3:ListBucketVersions']
    3. bucket=static.example.com, region=us-east-1, public_access=True
    ... (use --output json to see all)

Fact 2/2: Azure Storage Public Blob Access
Rule:     object_storage_public - Public Object Storage Attack Surface
Fact ID:     azure_storage_public_blob_access
Description: Azure Storage accounts with public blob access
Provider:    Azure
Neo4j Query: http://localhost:7474/browser/?cmd=play&arg=<encoded-query>
Results:     No items found

============================================================
EXECUTION SUMMARY
============================================================
Total facts: 2
Total findings: 3

Rule execution completed with 3 total findings

Usage¶

Framework filtering¶

You can filter rules by compliance framework short name, optional scope, and optional revision:

# List all NIST AI RMF-mapped rules
cartography-rules list --framework nist:ai-rmf

# Run all NIST AI RMF-mapped rules
cartography-rules run all --framework nist:ai-rmf

`list`¶

See all available rules¶

cartography-rules list

Output shows all rules with their IDs, names, and fact counts:

Available rules:
  - compute_instance_exposed (3 facts)
  - database_instance_exposed (4 facts)
  - mfa-missing (2 facts)
  - object_storage_public (2 facts)
  ...

See details of a specific rule¶

cartography-rules list mfa-missing

Output shows rule metadata and all associated facts:

Rule: mfa-missing
Name: User accounts missing MFA
Description: Detects user accounts without multi-factor authentication
Facts: 2
Version: 0.3.1

Facts:
  1. missing-mfa-aws (AWS)
     AWS IAM users that are not associated with any MFA device
     Maturity: EXPERIMENTAL
  2. missing-mfa-ontology (Cross-cloud)
     Active UserAccount nodes whose `_ont_has_mfa` is explicitly false
     Maturity: EXPERIMENTAL

See details of a specific fact¶

cartography-rules list mfa-missing missing-mfa-ontology

`run`¶

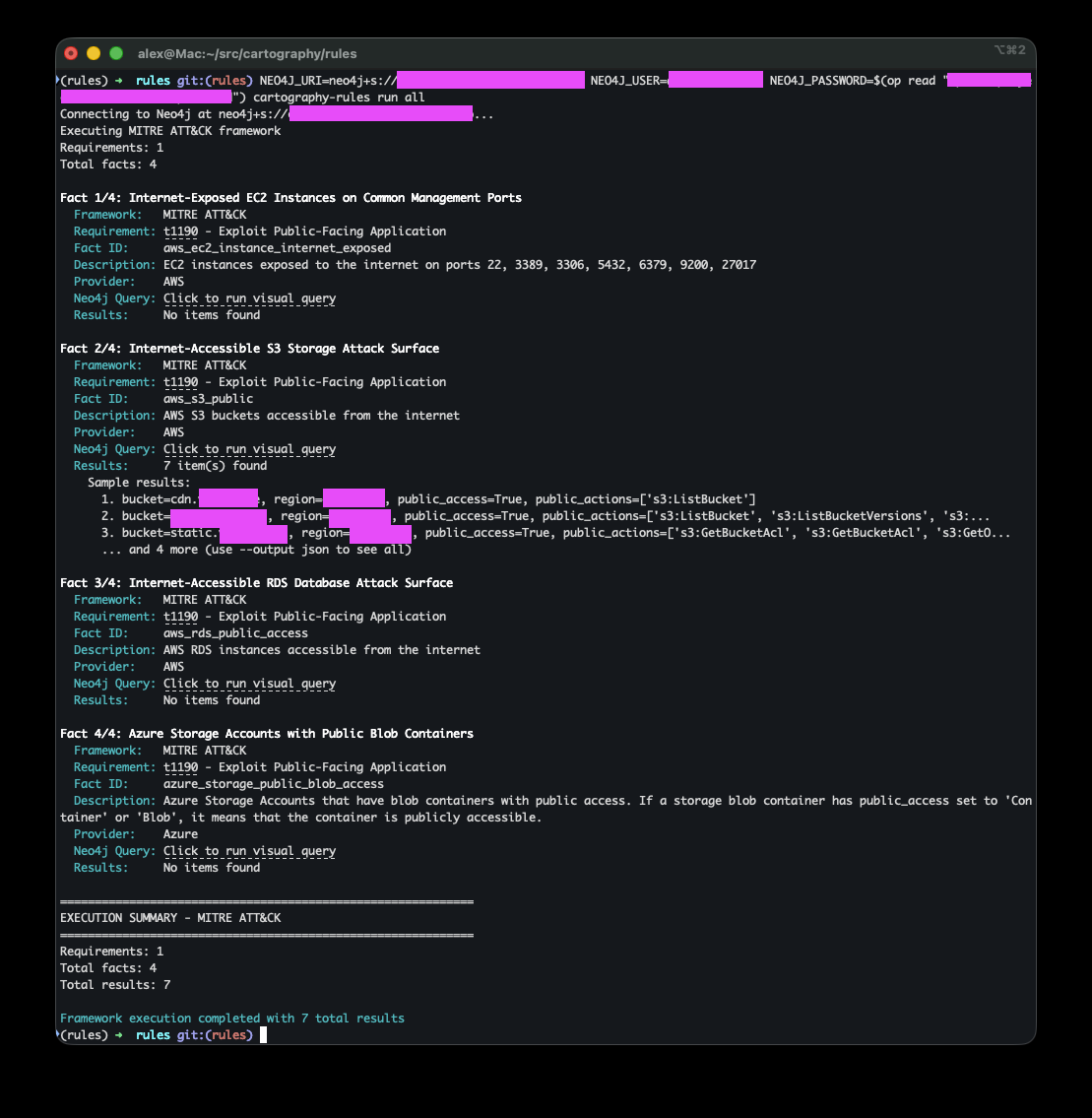

Run all rules in text mode¶

cartography-rules run all
# or
cartography-rules run all --output text

Run all rules in JSON mode¶

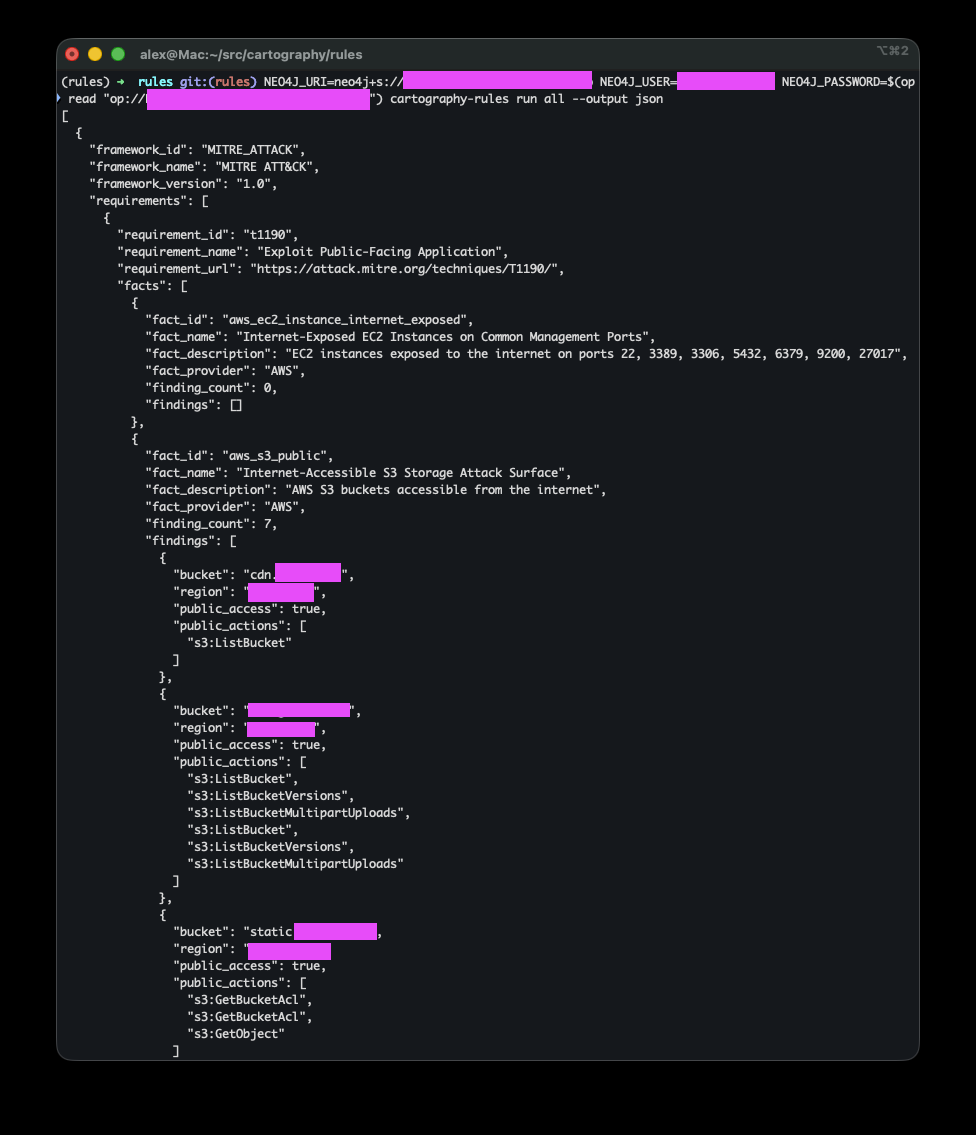

cartography-rules run all --output json

Run a specific rule¶

cartography-rules run mfa-missing

Run a specific fact within a rule¶

cartography-rules run object_storage_public aws_s3_public

Exclude experimental facts¶

cartography-rules run object_storage_public --no-experimental

Authentication Options¶

Use a custom environment variable for the password:¶

cartography-rules run mfa-missing --neo4j-password-env-var MY_NEO4J_PASSWORD

Use interactive password prompt:¶

cartography-rules run mfa-missing --neo4j-password-prompt

Tab completion¶

Note that you can TAB complete. Install it with

cartography-rules --install-completion

and then restart your shell and then you can get TAB completion like:

cartography-rules list <TAB>
cartography-rules run <TAB>

This will show you all available rules and facts.

Contributing New Rules¶

Want to add your own security rules? Here’s how:

Query Structure: cypher_query, cypher_visual_query, and cypher_count_query¶

Each Fact requires three distinct Cypher queries:

`cypher_query` - Data Query¶

Returns specific fields used to populate the output model. This query should:

Use explicit field selection with aliases (e.g., RETURN n.id AS id, n.name AS name)
Return only the data fields needed for the rule’s output model
Be optimized for data extraction and processing

Example:

MATCH (m:CloudflareMember)
WHERE m.two_factor_authentication_enabled = false
RETURN m.id AS id, m.email AS email, m.firstname AS firstname

`cypher_visual_query` - Visualization Query¶

Returns nodes and relationships for Neo4j Browser visualization. This query should:

Use RETURN * or explicit node/relationship returns (e.g., RETURN m or RETURN *)
Include relevant relationships and context for visual exploration
Help users understand the graph structure and connections

Example:

MATCH (m:CloudflareMember)
WHERE m.two_factor_authentication_enabled = false
RETURN m

Or with relationships:

MATCH (b:S3Bucket)
WHERE b.anonymous_access = true
WITH b
OPTIONAL MATCH p=(b)-[:POLICY_STATEMENT]->(:S3PolicyStatement)
RETURN *

`cypher_count_query` - Total Asset Count Query¶

Returns the total count of assets of the type being evaluated by the Fact. This query should:

Count all assets of the relevant type, regardless of whether they match the Fact criteria
Return a single value with RETURN COUNT(...) AS count
Enable calculation of compliance ratios (e.g., “10 public buckets out of 100 total”)

Example:

MATCH (m:CloudflareMember)
RETURN COUNT(m) AS count

Or for S3 buckets:

MATCH (b:S3Bucket)
RETURN COUNT(b) AS count

This count query allows users to understand the scope of their environment and calculate what percentage of assets are affected by a security finding.

General Query Guidelines¶

Ensure your queries are efficient and optimized for performance on large graphs.
Test your queries against realistic datasets to minimize false positives/negatives.
Follow existing code style and conventions for consistency.

Output Models with Pydantic¶

Each Rule must define an output model that extends Finding. This Pydantic model defines the structure of the data returned by the rule’s facts.

Creating an Output Model¶

from cartography.rules.spec.model import Finding

class MyRuleOutput(Finding):
    """Output model for my custom rule."""

    # Define the fields that will be populated from cypher_query results.
    # Declare a human-readable label first: the first non-empty field is used as the finding title.
    name: str | None = None         # Resource name (used as the finding title)
    id: str | None = None           # Resource identifier
    email: str | None = None        # User email (if applicable)
    region: str | None = None       # Cloud region
    public_access: bool | None = None  # Access level

    # Add any other fields relevant to your rule

Key Points¶

Inherit from Finding: Your model must extend the base Finding class
Use Optional Fields: All fields should be optional (| None = None) as different facts may return different subsets of data
Match Query Aliases: Field names should match the aliases used in your cypher_query (e.g., if query returns n.id AS id, model should have id field)
Automatic Handling:
- The source field is automatically populated with the module name (e.g., “AWS”, “Azure”)
- Fields not defined in the model are stored in the extra dictionary
- Number values are automatically coerced to strings
- Lists, tuples, and sets are joined into comma-separated strings
- Dictionaries are serialized to JSON strings

Example from object_storage_public¶

class ObjectStoragePublic(Finding):
    name: str | None = None
    id: str | None = None
    region: str | None = None
    public_access: bool | None = None
    account: str | None = None  # For Azure storage accounts

object_storage_public = Rule(
    id="object_storage_public",
    name="Public Object Storage Attack Surface",
    description="Publicly accessible object storage services",
    output_model=ObjectStoragePublic,  # Reference the output model class
    facts=(...),
    tags=("infrastructure", "attack_surface"),
    version="0.1.0",
)

Finding identity vs. display fields¶

Output-model fields are for display and context. Many of them change over time even though the underlying finding does not: counts (active_key_count, super_admin_count, image_count), dates and usage flags (days_since_rotation, last_used_date, is_stale_or_unused), and aggregate lists. If a downstream system that tracks finding lifecycle (first-seen time, acceptance/suppression, ownership, issue correlation) keys on those volatile fields, the same finding reappears as new every time a metric moves.

To give such consumers a stable contract, every Fact must declare identity_fields: the subset of output-model fields that form the stable logical identity of a finding across syncs. The field is required (no default), so a fact that omits it fails to construct.

_aws_user_direct_policies = Fact(
    id="aws_user_direct_policies",
    ...
    asset_id_field="user_arn",                    # compliance failing-count only
    identity_fields=("user_arn", "policy_arn"),   # one finding per attachment
)

Guidelines:

Every field in identity_fields must exist on the rule’s output model and be returned by the fact’s cypher_query (a unit test enforces this).
Downstream lifecycle tracking should build its storage identity from rule.id + fact.id + the identity_fields values, so multi-fact rules cannot collide.
For shared ontology labels (:UserAccount, :DeviceInstance, :Tenant, …) a node id is only unique per provider: two providers can have distinct nodes with the same id. A cross-cloud fact that matches such a label must include a provider discriminator (typically source from _ont_source) in identity_fields, returning it from the query if it is not already aliased.
identity_fields is emitted per fact in the cartography-rules run --output json output (on each fact result, alongside fact_id), so JSON consumers get the contract without importing the Python rule registry.
identity_fields is distinct from asset_id_field. asset_id_field only drives the distinct-asset failing count shown in compliance metrics; it is not a lifecycle-identity contract. The two can differ on purpose: aws_user_direct_policies counts distinct users (asset_id_field="user_arn") but treats each user/policy attachment as a separate finding (identity_fields=("user_arn", "policy_arn")).

Display field order (finding title)¶

The order in which fields are declared on the output model is a de-facto display contract. Downstream consumers derive a finding’s title by taking the first non-empty rule-specific field of the output model, in class declaration order. Declaration order is independent of identity_fields and asset_id_field (those stay whatever the identity contract needs) and of the cypher_query RETURN order (the model is keyed by alias name, not position).

The base Finding class declares two inherited fields, source and extra, before any rule-specific field, so model_fields / model_dump() lists them first. They are metadata, not display fields: a title-deriving consumer must skip source and extra and start from the first field declared on the rule’s own subclass. (The text runner’s sample output at cartography/rules/runners.py prints every field for debugging and is not the title consumer.)

Guidelines:

Declare a human-readable label first: a name, *_name, email, domain, or title. Avoid leading with an opaque id, ARN, URI, digest, region, or a boolean: those make the title an unreadable string instead of the resource a user recognizes.
A scope-level name (project/account/org) is only a good title when the finding’s resource is that scope (e.g. a project-level or account-level check). For a resource inside a scope, lead with the resource’s own name, not the project/account name.
If the field would be empty for every finding, it cannot serve as the title even if declared first. For example a “missing CMEK key” check whose key field is null by definition: the consumer skips it and falls through to the next field.
If the node has no natural name, alias one in the cypher_query and declare it first rather than leading with an id. Common patterns:
- coalesce(n.friendly_name, n.short_id) AS name
- an AWS Name tag: OPTIONAL MATCH (n)-[:TAGGED]->(t:AWSTag {key: 'Name'}) then coalesce(t.value, n.id) AS name
- a stable user-chosen identifier (e.g. an RDS DB instance identifier) is already human-readable and fine as the first field.

class DatabaseExposedOutput(Finding):
    """Output model for publicly exposed databases."""
    name: str | None = None    # human-readable label first: used as the finding title
    id: str | None = None
    region: str | None = None

Steps to add a new rule¶

Create a new rule file in cartography/rules/data/rules/:

from cartography.rules.spec.model import Fact, Rule, Finding, Maturity, Module

# Define facts with data, visualization, and count queries
_my_aws_check = Fact(
    id="my_aws_security_check",
    name="My AWS Security Check",
    description="What this checks for",
    cypher_query="""
    MATCH (n:SomeNode)
    WHERE <condition>
    RETURN n.id AS id, n.name AS name, n.region AS region
    """,
    cypher_visual_query="""
    MATCH (n:SomeNode)
    WHERE <condition>
    RETURN n
    """,
    cypher_count_query="""
    MATCH (n:SomeNode)
    RETURN COUNT(n) AS count
    """,
    identity_fields=("id",),
    module=Module.AWS,
    maturity=Maturity.EXPERIMENTAL,
)

_my_azure_check = Fact(
    id="my_azure_security_check",
    name="My Azure Security Check",
    description="What this checks for in Azure",
    cypher_query="""
    MATCH (n:SomeAzureNode)
    WHERE <condition>
    RETURN n.id AS id, n.name AS name, n.location AS region
    """,
    cypher_visual_query="""
    MATCH (n:SomeAzureNode)
    WHERE <condition>
    RETURN n
    """,
    cypher_count_query="""
    MATCH (n:SomeAzureNode)
    RETURN COUNT(n) AS count
    """,
    identity_fields=("id",),
    module=Module.AZURE,
    maturity=Maturity.EXPERIMENTAL,
)

# Define output model
class MyRuleOutput(Finding):
    """Output model for my custom rule."""
    name: str | None = None    # human-readable label first: used as the finding title
    id: str | None = None
    region: str | None = None

# Define rule
my_rule = Rule(
    id="my-finding",
    name="My Security Rule",
    description="Detects a security issue",
    output_model=MyRuleOutput,
    facts=(_my_aws_check, _my_azure_check),
    tags=("category",),
    version="0.1.0",
)

Register your rule in cartography/rules/data/rules/__init__.py:

from cartography.rules.data.rules.my_rule import my_rule

RULES = {
    # ... existing rules
    my_rule.id: my_rule,
}

Test it:

cartography-rules list my-rule
cartography-rules run my-rule

Submit a PR - PRs welcome! ❤️

Next steps¶

Explore the findings against your graph
Create custom findings for your environment-specific risks
Use JSON output (--output json) to integrate with your existing security tools
Contribute your findings back to the community via pull requests

Cartography Rules¶

Architecture¶

Design Philosophy¶

Rationale¶

Rules Lifecycle¶

Rule Versioning¶

Fact Maturity Levels¶

EXPERIMENTAL¶

STABLE¶

Filtering by Maturity¶

Typical Fact Lifecycle¶

Version and Maturity Together¶

Setup¶

Quick start¶

Usage¶

Framework filtering¶

list¶

See all available rules¶

See details of a specific rule¶

See details of a specific fact¶

run¶

Run all rules in text mode¶

Run all rules in JSON mode¶

Run a specific rule¶

Run a specific fact within a rule¶

Exclude experimental facts¶

Authentication Options¶

Use a custom environment variable for the password:¶

Use interactive password prompt:¶

Tab completion¶

Contributing New Rules¶

Query Structure: cypher_query, cypher_visual_query, and cypher_count_query¶

cypher_query - Data Query¶

cypher_visual_query - Visualization Query¶

cypher_count_query - Total Asset Count Query¶

General Query Guidelines¶

Output Models with Pydantic¶

Creating an Output Model¶

Key Points¶

Example from object_storage_public¶

Finding identity vs. display fields¶

Display field order (finding title)¶

Steps to add a new rule¶

Next steps¶

`EXPERIMENTAL`¶

`STABLE`¶

`list`¶

`run`¶

`cypher_query` - Data Query¶

`cypher_visual_query` - Visualization Query¶

`cypher_count_query` - Total Asset Count Query¶
